Overview
The Electric Ball Valve series consists of a valve body and an actuator, offering advantages such as a simple structure, reliable operation, high fluid passage capability, and energy efficiency.
Application
- On/Off control of hot/cold water circuits in heating systems, central air conditioning systems, solar water heating systems, and water treatment systems.
- Low-pressure steam circuit control.

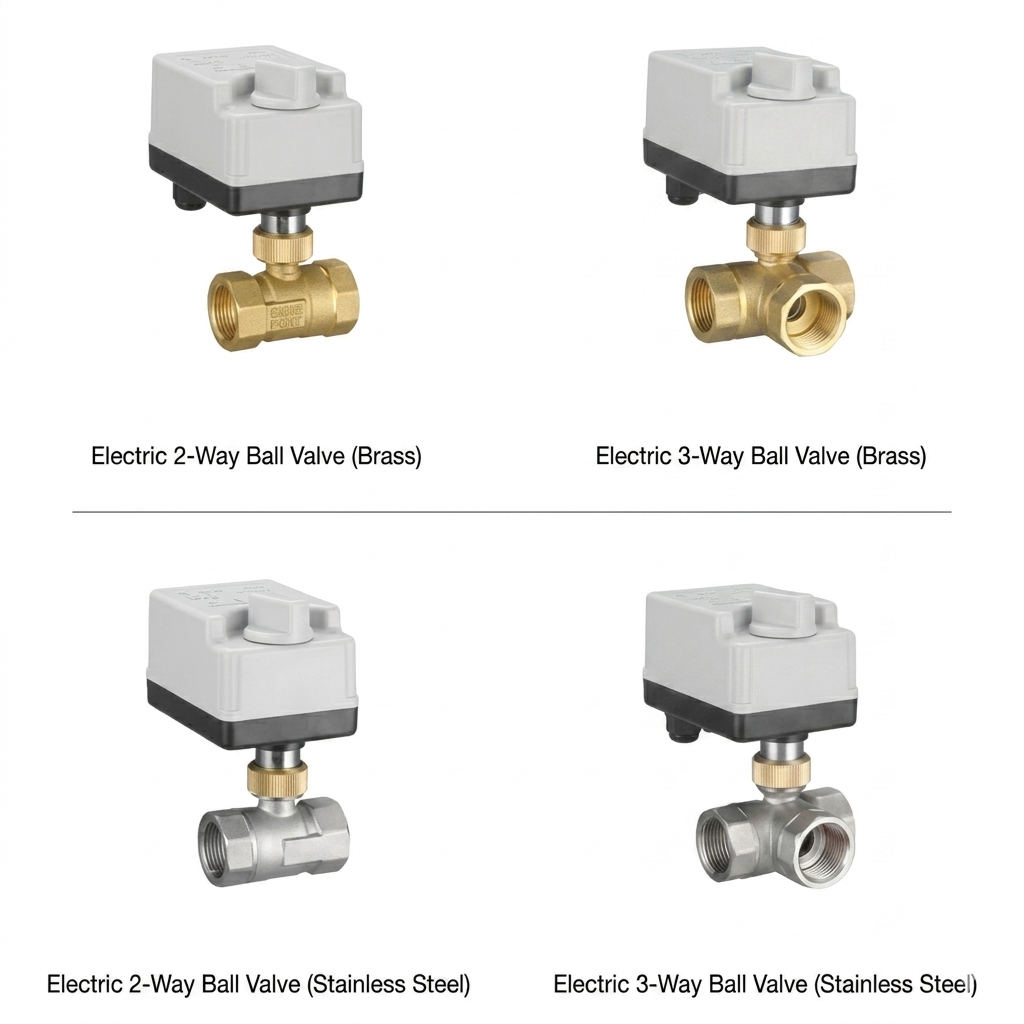

- The product line is available in both 2-way and 3-way configurations.
Product Features
- Built-in premium micro switch cuts off motor power after valve operation, delivering long lifespan, energy savings, and superior safety.
- Durable high-strength flame-retardant polymer housing.
- Premium PTFE sealing rings with special elastic ring structures ensure highly reliable sealing performance and significantly extended service life.
- Three-wire single-control ball valve actuator with built-in control PCB enables single-wire operation, supports three-speed switch configuration, and allows multiple valve parallel connection to reduce thermostat requirements.
- Excellent waterproof and dustproof performance (IP54 rated).
- Featuring 2-wire power-off reset function, it can directly replace solenoid valves in applications.
- Manual override function allows valve opening/closing during power outages.
Material & Technical Specifications
Main Materials
- Valve Body: Brass/Stainless Steel
- Disc: Brass/Stainless Steel
- Bonnet: Brass
- Stem: Brass/Stainless Steel
- Seal: NBR
Technical Specifications
- Medium: Chilled/Hot Water, 50% Glycol Solution
- Medium Temperature: 5–95°C
- Nominal Pressure (PN): 1600 kPa
- Flow Characteristic: Equal Percentage or Linear
- Leakage Rate: 0.01% of Kv value
General Technical Data
- Power Consumption: 6W (only when the valve turns on/off)
- Run Time: < 20S
- Protection Rate: IP54
- Size of Valve Body: 1/2″—2″
- Connection Mode: G Thread

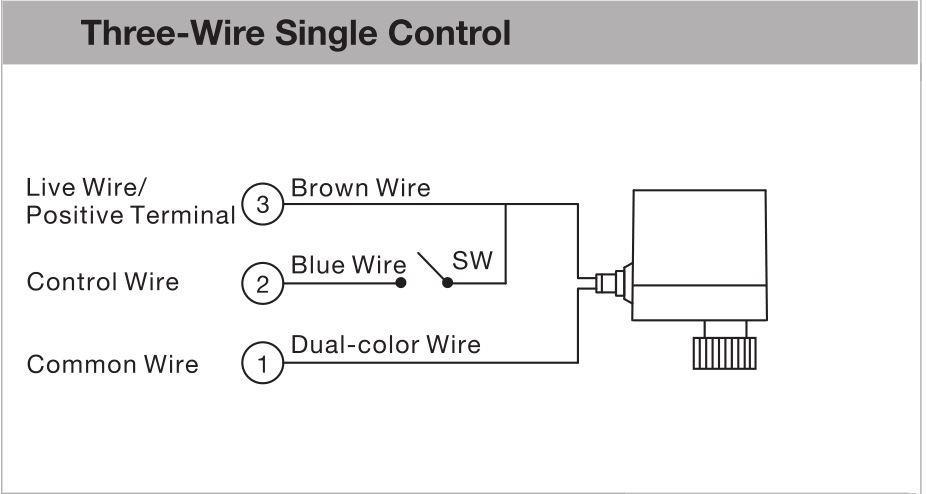

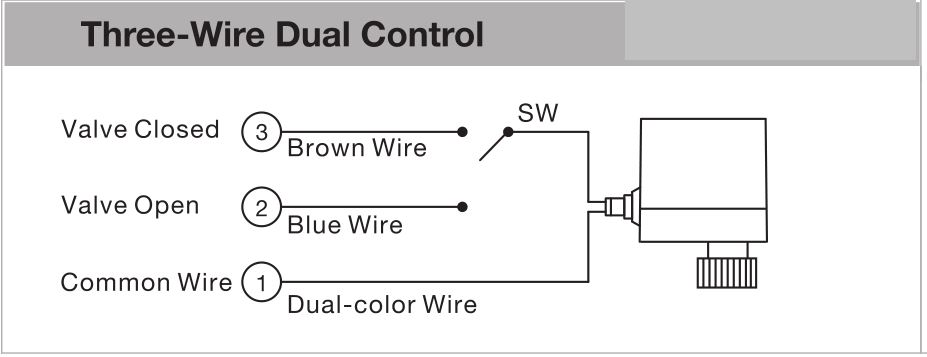

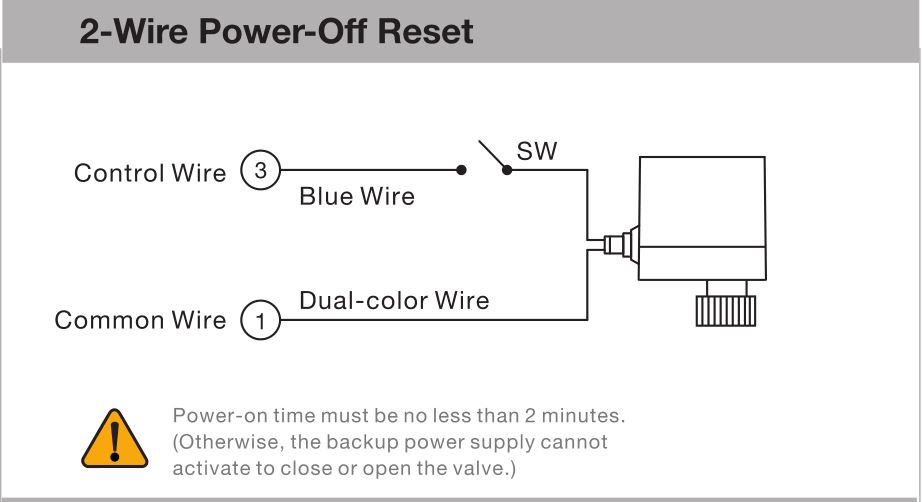

Wiring Diagram

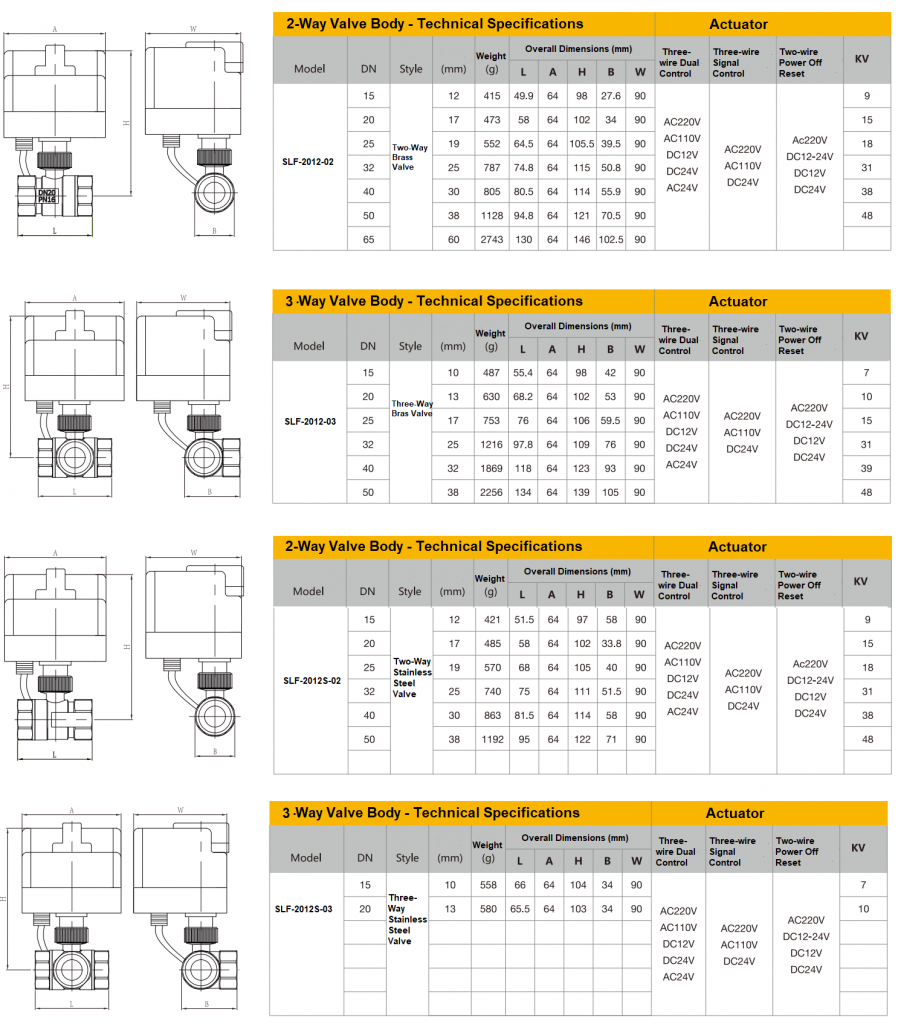

Dimensions And Parameters
