Product Overview
This series of static balancing valves is designed for precise flow control and measurement in HVAC and industrial fluid systems. Featuring a high-precision Venturi insert, these valves provide stable flow measurement signals and efficient performance across a wide temperature range.
Technical Specifications
- Working Pressure:≤2.0Mpa
- Working Temperature:-20 ℃≤T≤120℃
- Compatible Media:Water, Glycol mixtures
Note:Below 0 ℃:Only for water with antifreeze fluids. Over 100℃:Only for water with anti-boiling fluids.

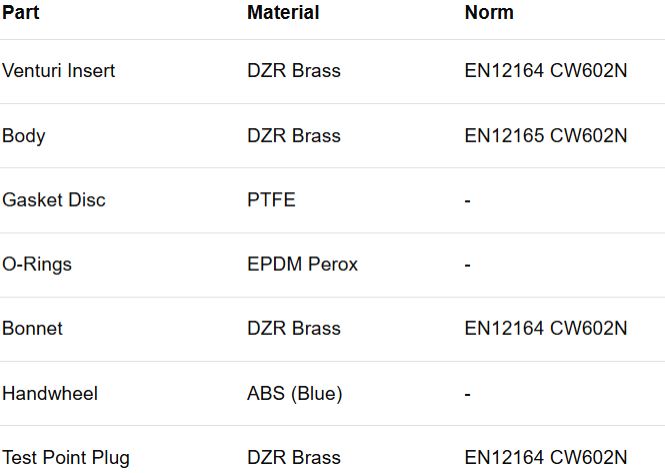

Materials of Construction

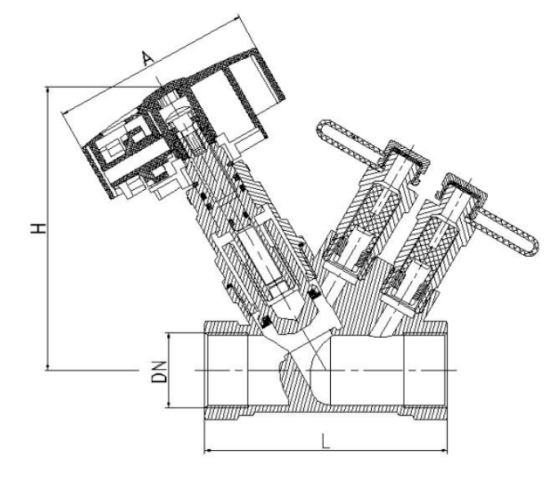

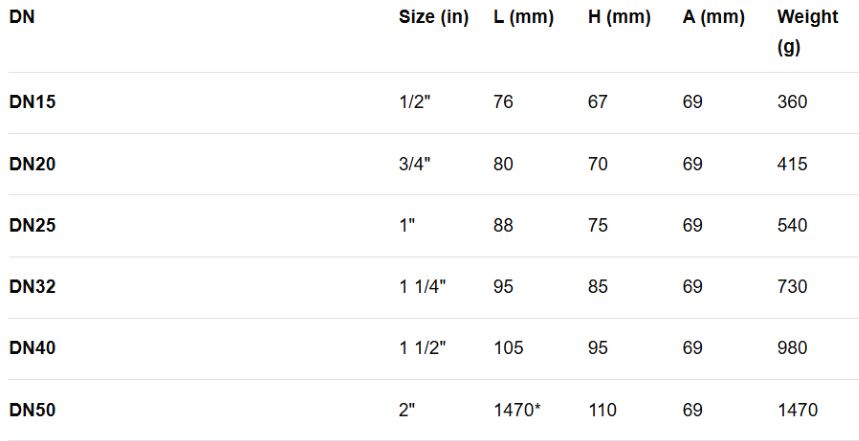

Dimensions & Weights
